The reference system hierarchy is critical to ensuring mold precision throughout its lifecycle:
Primary reference: Injection molding machine center
Secondary reference: Mold frame guide pillar holes (tolerance ±0.005 mm)
Tertiary reference: Insert positioning mechanism (tolerance ±0.01 mm)
Case Study: An automotive ECU connector mold implemented a “cross centerline + dual guide pins” benchmark system and achieved positioning drift < 0.02 mm after 2 million production cycles.
Cone surface + spring-loaded pins: Suitable for metal terminals (irregular shapes). Cone angle: 30° ± 1°, spring preload: 0.5–0.8 mm.
Vacuum suction slots: Ideal for brittle ceramic substrates. Suction area: >60%, vacuum pressure ≤ -80 kPa.
Hydraulic clamps: Used for large inserts like battery contacts. Required clamping force: F ≥ 1.2 × injection pressure × projected area.
Using Moldflow analysis, engineers simulate molten material impact to fine-tune insert layout and optimize flow channel design.
Temperature differences between mold steel and stainless steel inserts necessitate thermal compensation. Proper matching ensures longevity and repeatability.
Recommended clearance: 0.05–0.12 mm per 100 mm length difference.
Case Study: A new energy vehicle charging gun mold incorporated a 0.1 mm stepped gap on insert sidewalls to address 200°C injection temperature differences.
Locating pin hole machining: Slow-wire cutting (±0.003 mm) → Coordinate grinding (Ra ≤ 0.2 μm) → TD coating (HV2500+).
Vacuum slot engraving: Five-axis laser engraving (slot width 0.3 ± 0.02 mm) avoids deformation seen in traditional milling.
A rigorous three-level inspection protocol ensures long-term stability:
Guide pillar parallelism: ≤ 0.008 mm/m via CMM
Locating repeatability: ≤ ±0.01 mm over 50 clamping cycles
Thermal displacement check: Heated to 120°C to test insert alignment
Critical wear points are reinforced using a dual-coating process:
Base Layer: Chemical nickel plating (15μm, corrosion-resistant)
Top Layer: DLC coating (friction coefficient < 0.08, lifespan > 800,000 cycles)
Case Study: A SIM card slot mold reduced pin wear from 3 μm/100k cycles to 0.5 μm/100k cycles using DLC.

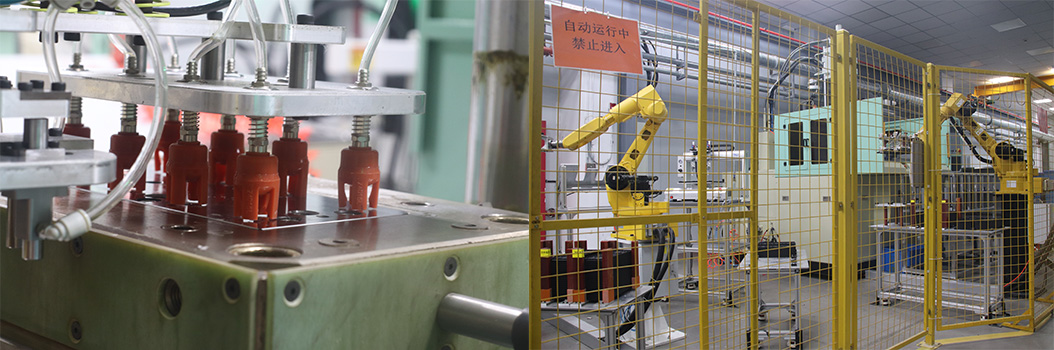

SMED principles were applied using modular insert carriers (HASCO interfaces), reducing changeover times from 45 minutes to 4 minutes.
Case Study: A Shenzhen e-cigarette mold switched 12 insert types in under 5 minutes.
Fiber-optic sensors: Real-time insert detection (error < 0.1 ms)
Piezoelectric films: Monitor insert pressure; automatic shutdown if deviation > ±5%
Connected to the injection molding PLC, these sensors enable real-time pressure curve optimization.
Result: Medical needle mold yield increased from 92% to 99.3%.
Dynamic runner depth design (tolerance ±0.02 mm) ensures uniform molten coverage of inserts.
Case Study: A Bosch oxygen sensor mold used a gate depth gradient (1.8 mm–2.5 mm) to solve incomplete encapsulation.
FIB Technology: Carves nanoscale positioning slots with ±0.2 μm precision.
Material Innovation: Carbon fiber-reinforced PEEK inserts offer 60% weight reduction and higher thermal compatibility.
Deep learning models trained on historical data are now used to auto-optimize positioning mechanisms during production, minimizing human intervention and predictive error.
Design-first: Reference system → Simulation → Built-in error-proofing
Precision manufacturing: Ultra-precision machining → Reinforcement coatings → Three-level inspection
Smart mass production: Modularization → Sensor feedback → Data-driven optimizations
Positioning accuracy: Validated at ±0.015 mm over 2 million mold cycles.
