Nylon (PA) injection mold design and manufacturing tips

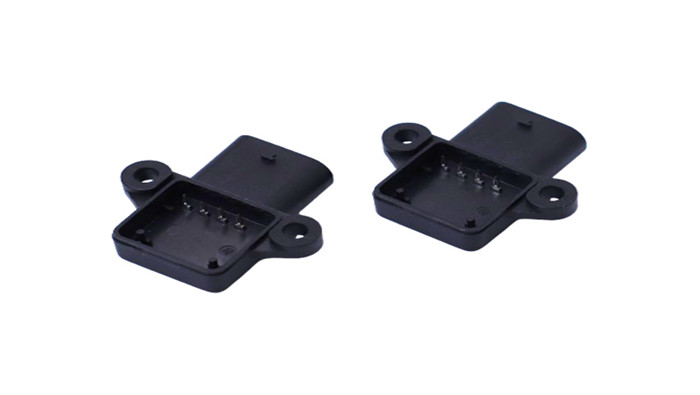

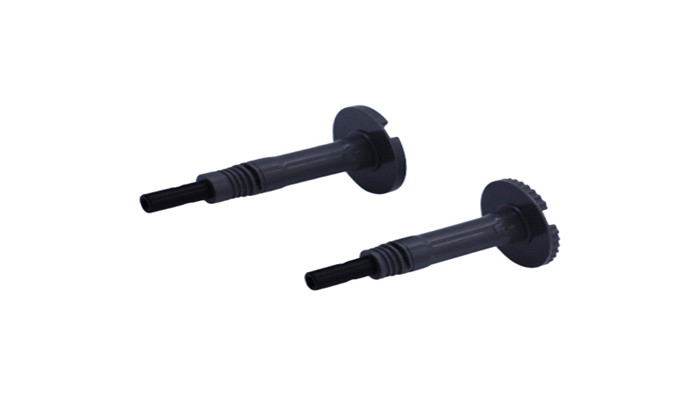

Nylon (PA), as one of the most widely used engineering plastics, boasts high strength, wear resistance, and chemical corrosion resistance, making it suitable for auto parts, electronic casings, mechanical structural components, etc. The design and manufacturing of its injection molds must closely match the material properties to ensure stable product quality and production efficiency. Core points are as follows:

(I) Core Design Points

1. Optimize structure to adapt to material characteristics: Nylon is highly hygroscopic, so venting channels (width 0.01-0.02mm, depth 0.5-1mm) must be reserved to avoid bubbles and scorching. With a shrinkage rate of 3%-5% (1%-2% for glass fiber-reinforced grades), precise compensation for cavity dimensions is required, and a 3°-5° draft angle is set to prevent product sticking.

2. Precise design of gating system: Adopt fan-shaped or pin-point gates with a diameter of 2-4mm, avoiding key stress-bearing areas. The runner cross-section is circular with a diameter of 6-10mm to reduce flow resistance and prevent weld lines from affecting strength.

3. Uniform and efficient cooling system: Use conformal cooling channels with a spacing of 15-25mm and a distance of 8-12mm from the cavity wall. Control the water temperature at 20-40℃ to ensure uniform nylon crystallization and reduce product deformation and internal stress.

(II) Key Manufacturing Requirements

1. Rational selection of mold materials: Cavities and cores preferably use wear-resistant steels such as S136 and H13. Molds for glass fiber-reinforced nylon products should undergo nitriding treatment (hardness ≥60HRC) to improve wear resistance.

2. Strict control of processing precision: Dimensional tolerance is controlled according to IT8-IT9 grade, and surface roughness Ra ≤0.8μm. The cavity surface can be polished or textured to enhance product release and appearance quality.

3. Mold trial and optimization iteration: During mold trial, control the material temperature at 220-280℃ and mold temperature at 40-80℃. Adjust cavity dimensions and cooling schemes based on product shrinkage and deformation to ensure batch production stability.
