Key Technical Factors in Thermoplastic Elastomer (TPE) Overmolding Mold Design

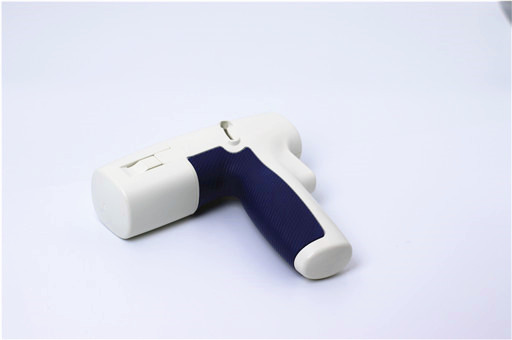

Thermoplastic elastomer (TPE) overmolding molds are critical for producing high-end composite products (e.g., TPE over ABS, PP). Their design and processing directly impact bond strength, aesthetics, and production efficiency. This article analyzes key technical aspects from four dimensions: material compatibility, mold design, process control, and innovation trends.

1. Material Compatibility Design

Molecular Structure Matching

TPE and substrate (e.g., ABS, PP) must have similar polarity to ensure interfacial bonding. For example, ABS (polar) requires polar TPE (e.g., SEBS-based), while PP (non-polar) needs non-polar TPE (e.g., PP-based)5.

Solubility parameter (SP value) difference should be ≤0.5 to prevent delamination or adhesion failure10.

Material Pretreatment

TPE must be dried (humidity ≤0.1%) to prevent bubbles4; substrates require surface cleaning to enhance adhesion.

2. Core Mold Design Elements

Runner and Gate System

Flow Length Ratio: Maintain within 120:1 to avoid pressure loss at flow ends.

Micro-Gate Design: Pin-point gates (diameter 0.1-0.3 mm) reduce shear heat, ideal for thin-wall overmolding (0.5-1 mm).

Venting and Anti-Sticking Design

Nano-Scale Vents: Depth 0.01-0.025 mm at melt ends and insert junctions to prevent air traps.

Surface Treatment: Textured or mirror polishing (Ra≤0.02 μm) reduces adhesion; hard chrome or DLC coatings enhance wear resistance.

Ejection System Optimization

Ejection Layout: Use ejector pins or sleeves on surfaces to avoid whitening deformation9.

3. Injection Process Control

Temperature Management

Melt Temperature: TPE typically processes at 180-220°C, must match substrate melting points (e.g., ABS requires 190-230°C).

Mold Temperature: 60-80°C ensures flowability without degradation.

Pressure and Speed

Injection Pressure: 60-100 MPa; excess pressure (>100 MPa) increases flash risk by 30%.

Holding Time: Adjust based on thickness (5-8 seconds per 1 mm) to prevent sinks or overpacking.

Cooling and Cycle Time

Conformal Cooling: 3D-printed stainless steel channels reduce cooling time by 20%.

Cycle Optimization: Overmolding cycles are typically 20-30% longer than standard injection molding.

4. Quality Control and Innovation Trends

Defect Prevention

Sticking Issues: Add lubricants (e.g., 0.1-0.5% silicone oil) or use release agents (fluorine-based coatings).

Bubble Control: Vacuum venting systems (vacuum ≤0.1 MPa) eliminate internal pores.

Smart Mold Technology

IoT Integration: Real-time monitoring of in-mold pressure/temperature for dynamic adjustments.

Moldflow Analysis: CAE software (e.g., Moldflow) optimizes gate placement.

Green Manufacturing

Material Recycling: TPE scrap can be 100% reused, reducing cost and environmental impact.

Conclusion

Successful TPE overmolding hinges on integrating material science, precision engineering, and smart control. Future trends include:

High-Throughput Molds: Multi-cavity (≥16) designs with hot runners for efficiency;

Adaptive Processes: AI-driven real-time optimization for zero-defect production;

Biodegradable TPE: Eco-friendly materials for medical and consumer applications.

Manufacturers must focus on mold precision, digitalization, and material innovation to meet high-end demands.
