Overmolding is an advanced process that encapsulates substrates with thermoplastic elastomers (such as TPU, TPE, or LSR), widely used in tool handles, waterproof seals for electronic devices, and medical device grips. Precise insert positioning and automated handling are critical to ensuring overmolding quality, directly impacting product yield and production efficiency. This article delves into the key technical details involved.
Design Essentials for Insert Positioning Systems
Precision Positioning Structures
Insert positioning accuracy in the mold must be controlled within ±0.05mm to prevent uneven coating thickness or flash. Common positioning methods include:
Mechanical Positioning: Tapered positioning pins (taper ratio 1:10) are used with precision holes on the insert to ensure repeatable accuracy. For irregularly shaped inserts, contoured nesting cavities (gap ≤0.02mm) can be CNC-machined to match the insert profile.
Vacuum Adsorption Positioning: Micro-hole vacuum channels (0.3-0.5mm diameter) on the mold surface provide adsorption force 3-5 times the insert weight (refer to ISO 16090 standards) to prevent displacement under injection pressure.
Thermal Expansion Compensation
Differences in thermal expansion coefficients between metal inserts and mold steel require CAE simulation compensation (e.g., aluminum alloy inserts expand approximately 0.1mm/m at 140°C). Practical solutions include reserved expansion gaps or using temperature-adaptive positioning mechanisms (e.g., bimetallic compensation strips).
Error-Proofing Mechanisms
Built-in sensors (e.g., OMRON E3X-HD fiber optic sensors) detect insert presence and orientation. For multi-cavity molds, each station must be independently monitored to avoid entire batch scrap.
Implementation Solutions for Automated Handling Systems

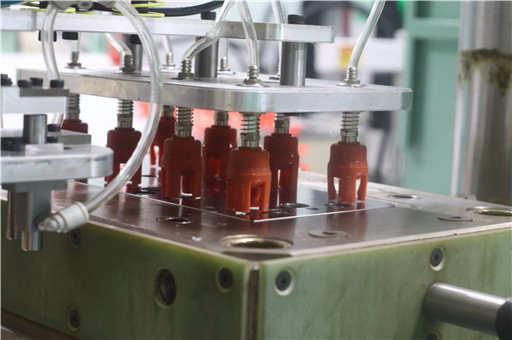

Robot Selection and Gripper Design
Drive Method: Servo-driven six-axis robots (e.g., FANUC M-710iC) offer repeatable accuracy of ±0.02mm, suitable for high-speed precision handling.
Gripper Design: Gripping methods are selected based on insert characteristics:
Magnetic Grippers: Ideal for ferrous inserts, with adjustable magnetic field strength (100-500 Gauss) to prevent drops due to impact.
Pneumatic Soft Grippers: For deformable or smooth-surface inserts (e.g., plated parts), silicone contact surfaces are used with pressure controlled at 0.2-0.5MPa.
Vacuum Cups: For flat inserts, polyurethane cups (Shore A 40-50°) are employed, with vacuum generator flow rates matched to cup volume (response time <0.1s).
Vision-Guided Positioning
CCD vision systems (e.g., Keyence CV-X series) correct insert positions:
Calibration: A nine-point calibration method aligns the camera coordinate system with the robot coordinate system, achieving ±0.01mm repeat accuracy.
Feature Recognition: Edge detection algorithms (e.g., Canny operator) calculate offset values based on position holes or edge features on the insert.
Production Cycle Optimization
Robot handling cycles must synchronize with injection molding cycles:
Parallel operations (e.g., cleaning inserts while removing parts) reduce auxiliary time to under 3 seconds.
Dual-robot collaboration (one removes finished parts, another places inserts) eliminates mold idle time.
Typical Case Study
An electric tool handle overmolding production line achieved significant yield improvements through:
Upgrading positioning pins to tungsten carbide (hardness HRA 90), extending service life from 100,000 to 500,000 cycles.
Adding force sensors (ATI Nano17) to grippers for real-time monitoring of clamping force (set range 5-8N), preventing insert deformation.
Using infrared thermography (FLIR A315) to monitor insert preheating temperature (80±5°C for TPE overmolding), reducing temperature fluctuations by 60%.
Technology Trends
Digital Twin Applications: Virtual debugging optimizes robot trajectories, reducing on-site adjust time by over 50%.
Adaptive Gripping Systems: Deep learning enables recognition of random insert orientations, suitable for low-volume, high-variability production.
The positioning and automation systems for overmolding require interdisciplinary knowledge in mechanical design, sensor technology, and control algorithms. Only by meticulously controlling every detail can high-quality mass production be achieved.
