Key Technical Considerations for Injection Mold Design with Crystalline Plastics

Key Technical Considerations for Injection Mold Design with Crystalline Plastics

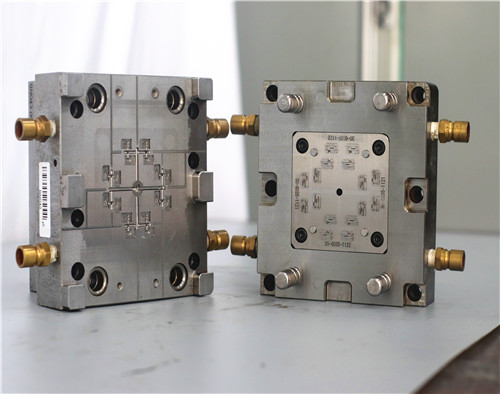

In the field of plastic injection molding, crystalline plastics present unique challenges for mold design due to their distinct molecular structure. Unlike amorphous plastics, crystalline plastics undergo molecular rearrangement into ordered crystal structures during cooling, significantly impacting various aspects of mold design.

Shrinkage Control is the Primary Consideration

The transition from molten to solid state in crystalline plastics involves significant volume shrinkage as molecules pack into ordered arrangements. For instance, polypropylene (PP) typically exhibits molding shrinkage rates of 1.8-2.5%, while nylon (PA) ranges between 0.8-2.0%. This characteristic demands precise calculation and compensation for shrinkage during mold design to prevent dimensional inaccuracies in final products.

In practical design, mold engineers must integrate material supplier data with product structure and process conditions. Glass fiber reinforced crystalline plastics, for example, demonstrate reduced shrinkage rates (typically 0.2-0.8%) due to the constraining effect of fibers—a crucial consideration during initial design stages.

Cooling System Design is Critical

The degree of crystallization directly influences mechanical properties and dimensional stability, with cooling rate being a determining factor. Slow cooling promotes well-developed crystal structures and higher crystallinity, while rapid cooling results in incomplete crystallization.

To address these characteristics, mold cooling systems must meet specific requirements:

Maintain uniform temperature distribution with variations within ±3°C

Adjust cooling rates according to wall thickness, allowing sufficient time for thick sections

Implement zonal temperature control for precise thermal management

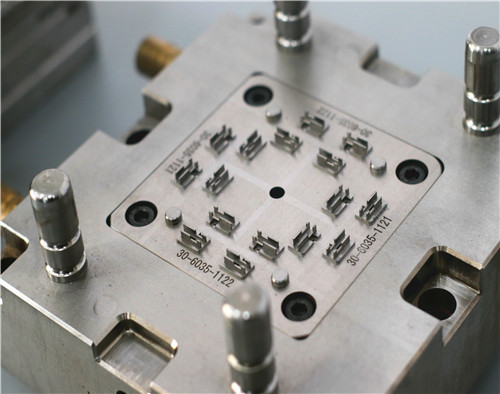

Special Considerations for Runner and Gate Design

Runner system design for crystalline plastics requires careful balance between melt flow and crystallization behavior. Main runner diameters should exceed 4mm, with branch runners between 3-6mm, ensuring complete cavity filling before crystallization initiation.

Gate design should avoid excessively small dimensions to prevent premature cooling and crystallization. For materials like polyethylene (PE), gate thickness should be at least two-thirds of the product wall thickness. Gate placement in areas of uniform wall thickness helps minimize crystallization variations caused by flow orientation.

Venting System Requires Attention

Volume shrinkage during crystallization generates gases that, if not properly vented, can cause bubbles and voids. Vent depths should be maintained at 0.02-0.04mm with widths of 3-8mm. Large molds require multiple venting points to ensure efficient gas escape.

Material Selection Demands Special Requirements

Given the typically higher processing temperatures of crystalline plastics, mold steels must exhibit excellent thermal stability and resistance to thermal fatigue. Pre-hardened steels like P20 and 718 with hardness values of HRC30-36 are recommended. For more demanding applications, age-hardening steels such as S136 provide superior performance.

Heating System Necessity

In certain cases, controlling crystallization requires integrated heating systems. Particularly for materials with high crystallization temperatures like polyoxymethylene (POM), which crystallizes around 140-150°C, mold temperatures must be maintained at 80-120°C using cartridge heaters or thermal oil systems.

Conclusion

Injection mold design for crystalline plastics represents a systematic engineering challenge requiring comprehensive consideration of material characteristics, product structure, and manufacturing processes. Through precise shrinkage compensation, rational cooling system design, appropriate runner layout, and strict temperature control, manufacturers can ensure production of dimensionally stable, high-performance plastic components. As new materials and processes continue to emerge, mold designers must continually update their expertise to meet evolving production requirements.
