Key Factors in the Design, Manufacturing, and Testing of PEEK Injection Molds

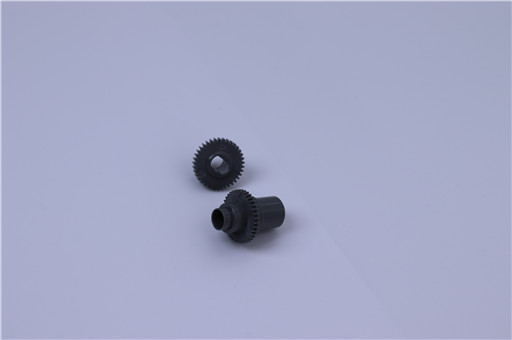

PEEK (Polyether ether ketone) is recognized as one of the most advanced engineering plastics due to its high temperature resistance, chemical stability, and excellent mechanical properties. It has been widely applied in aerospace, medical devices, and automotive components. However, to fully unlock the material’s potential, the design and production of PEEK injection molds must meet the highest technical standards. This article explores the key factors in mold design, manufacturing, and testing.

1. Design Considerations for PEEK Injection Molds

1. High-Temperature Resistance
   With a melting point near 343°C and processing temperatures ranging from 360°C to 400°C, mold steels such as H13 or S136 are recommended. Proper heat treatment is essential to ensure hardness and thermal stability under prolonged high-temperature cycles.

2. Optimized Gating System
   Due to its relatively low flowability, PEEK requires carefully balanced gate and runner systems. Hot runner designs and adequate venting channels help reduce short shots, burn marks, or air entrapment.

3. Shrinkage and Dimensional Accuracy

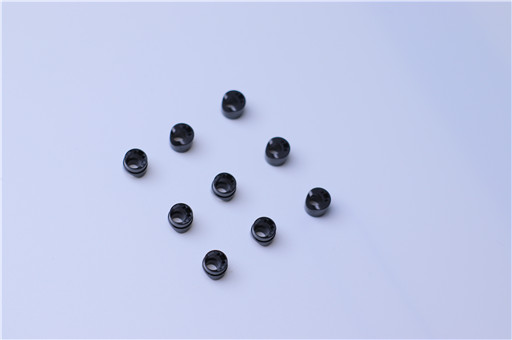

   PEEK’s shrinkage rate is about 0.5–1.0%. Precision applications, such as implants or electronic parts, demand mold designs that pre-compensate for shrinkage to ensure high dimensional accuracy.

4. Cooling System Design
   Although PEEK molding requires high temperatures, efficient cooling is equally critical. Proper channel layout ensures dimensional stability and reduces warpage. Some advanced molds employ thermal insulation layers to maintain temperature uniformity.

2. Manufacturing Essentials

1. Material Selection and Precision

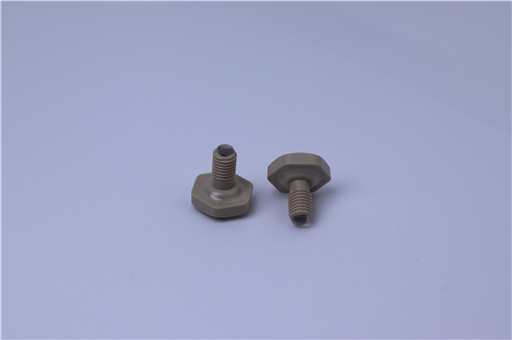

   High-hardness, corrosion-resistant tool steels are a must. Polished mirror surfaces are often required for applications where smooth part finishes are critical, especially in medical and electronic industries.

2. Machining and Stress Relief
   After EDM and CNC machining, stress-relief heat treatments are necessary to avoid deformation under high-temperature conditions. Special surface finishing in cavity and gate areas can further extend mold life.

3. Surface Treatment
   To achieve excellent demolding and prevent part scratches, mold cavities are often chrome-plated or nitrided, improving wear resistance and reducing defects.

3. Testing and Validation

1. Trial Molding
   Multiple trial runs are required to evaluate filling performance, venting, and demolding. Fine-tuning of injection speed, holding pressure, and mold temperature ensures stability.

2. Process Validation
   Since PEEK’s mechanical performance is sensitive to temperature variations, validation tests are needed to confirm consistent part quality. For example, residual stresses in medical implants may reduce reliability after sterilization if not controlled.

3. Durability and Production Testing
   Long-term trials simulate mass production to verify the mold’s ability to endure high-temperature, high-pressure cycles and ensure stable performance.

4. Conclusion

The design, manufacturing, and testing of PEEK injection molds represent a sophisticated process that requires deep expertise in materials, processing, and tooling. Only through careful steel selection, gating and cooling design, precision machining, surface finishing, and thorough testing can manufacturers fully realize PEEK’s advantages. With the continued growth of aerospace, medical, and automotive sectors, the demand for high-performance tooling is set to rise. PEEK injection molds will remain at the heart of precision molding and high-end manufacturing.
