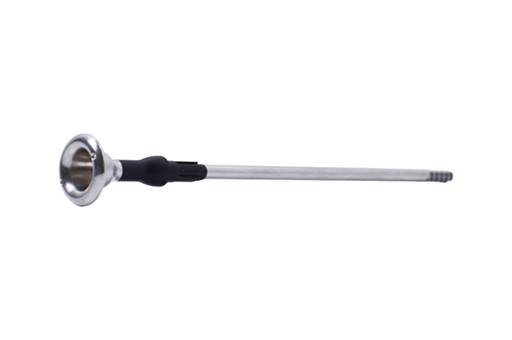

Insert Molding is an advanced manufacturing process that encapsulates pre-formed metal, ceramic, or other material components within plastic via injection molding. This technique is widely used in electronic connectors, medical devices, automotive parts, and other fields to achieve structural integration, functional optimization, and cost control. This article explores the key factors to consider when designing molds for insert molding, providing insights for engineers and manufacturers to optimize production processes.

Precision Positioning and Securing of Inserts

Accurate positioning of inserts in the mold is fundamental to ensuring product quality. Design considerations include:

Positioning Structures: The mold must incorporate dedicated fixtures such as positioning pins, slots, or magnetic holders to prevent insert displacement or loosening during injection. For precision electronic connectors, positioning accuracy must be within ±0.05mm.

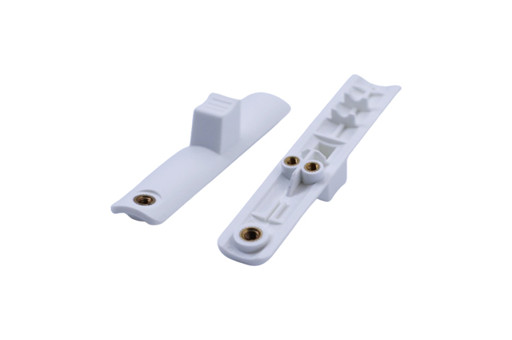

Insert Pretreatment: Metal inserts require cleaning and surface treatment (e.g., sandblasting, plating) to enhance adhesion to plastic. For example, nickel-plated copper inserts improve bonding strength with engineering plastics like PBT.

Mold Structure Design

The mold structure directly impacts the efficiency and quality of insert molding:

Runner and Gate Design: To avoid molten material impacting the insert, side gates or point gates are recommended to allow material flow parallel to the insert surface. For multi-cavity molds, hot runner systems ensure uniform filling.

Cooling System Optimization: Differences in thermal conductivity between inserts and plastic can cause localized stress concentration. Conformal cooling channels should be designed to control cooling rates and reduce sinks and deformation. For example, dense cooling channels around stainless steel inserts balance heat dissipation.

Venting Design: Gaps between inserts and mold walls can trap air, requiring venting slots (0.01-0.03mm depth) or vacuum systems to prevent burning or short shots.

Material Compatibility and Process Parameters

Thermal Expansion Coefficient Matching: Differences in thermal expansion coefficients between metal inserts and plastic can cause internal stress after cooling. For example, when combining aluminum inserts with PEEK, simulation software should be used to calculate shrinkage rates and adjust mold dimensions accordingly.

Injection Parameter Control: Melt temperature, injection speed, and pressure must be adjusted based on insert characteristics. For example, when encapsulating stainless steel inserts, higher melt temperatures (290°C-320°C) and slower injection speeds are recommended to reduce residual stress.

Quality Control and Automation

Online Inspection Systems: Sensors integrated into the mold can monitor insert position and injection pressure in real time, ensuring production stability.

Automated Insert Loading: For high-volume production, robots or rotary molds can automate insert placement, improving efficiency and reducing human error.

Common Issues and Solutions

Insert Displacement: Add mechanical interlocking features (e.g., grooves or holes) between inserts and the mold.

Insufficient Bonding Strength: Optimize insert surface treatment (e.g., laser texturing or adhesive promoters).

Insert molding mold design is a systematic engineering task that requires balancing positioning accuracy, mold structure, material properties, and process parameters. With advancements in smart manufacturing, insert molding is evolving toward higher precision and full automation, offering new possibilities for the manufacturing industry.
