How Plastic Material Properties Influence Injection Mold Design and Manufacturing
In the field of injection molding, the characteristics of plastic materials directly determine mold design solutions and manufacturing processes. Different plastic properties require corresponding design strategies from mold engineers, with everything from runner systems to cooling layouts needing precise adjustments based on material characteristics.

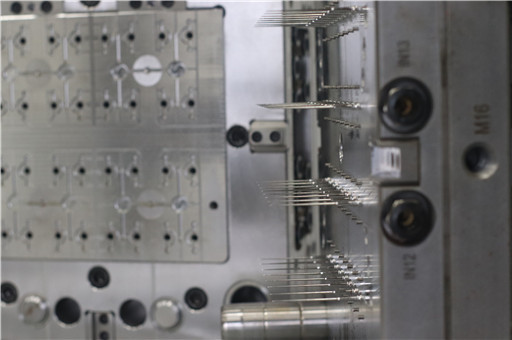

Material Fluidity and Mold Runner Design
Plastic fluidity is the primary consideration in mold design. High-fluidity materials like polypropylene (PP) and nylon (PA) allow for smaller gates and longer runners, while low-fluidity materials like polycarbonate (PC) require larger gate sizes and shorter runners to ensure complete filling.
For instance, with glass fiber reinforced materials, molds require special attention to gate placement and runner design to avoid product warping caused by fiber orientation. The main runner should be sufficiently large, typically with a diameter of at least 4mm, to ensure smooth melt flow.
Shrinkage Rate and Core Dimension Calculation
Different plastics exhibit significant variations in shrinkage rates, directly affecting core dimension design. For example, polyoxymethylene (POM) has a shrinkage rate of approximately 2.0-2.5%, while ABS shrinks between 0.4-0.7%. Mold designers must precisely calculate core dimensions based on material-specific shrinkage rates to ensure final products meet specifications.
Crystalline materials like POM and PA typically have higher shrinkage rates, requiring greater dimensional compensation in core design. Conversely, non-crystalline materials like PC and PMMA have lower shrinkage rates, making dimensional control relatively easier.
Thermal Properties and Cooling System Optimization
The thermal conductivity of plastics determines mold cooling system design. Materials with high thermal conductivity like POM require more efficient cooling systems to maintain production cycles, while materials like PC need longer cooling times due to their lower thermal conductivity.
Cooling channel layout should be optimized according to product shape and material characteristics to ensure uniform heat dissipation. For thick-walled products, the cooling system is particularly crucial, as uneven cooling can cause sink marks or internal stress.
Wear Resistance and Mold Material Selection
Plastic materials containing reinforcing fibers cause more significant mold wear. For example, glass fiber reinforced nylon accelerates wear in mold runners and cavities. Therefore, such applications typically require more wear-resistant mold steels, such as harder S136 or surface-treated mold steels.
Modern Mold Design Trends
With advancements in CAE technology, mold designers can now predict material behavior in molds through flow analysis software, thereby optimizing design solutions. This includes predicting weld line positions, filling patterns, and cooling effectiveness, making mold manufacturing more precise and efficient.
Close collaboration between material suppliers and mold manufacturers has also become increasingly important. By sharing material characteristic data, they can jointly optimize mold design to improve molding quality and production efficiency.
